This step-by-step guide walks you through the VisionLink application and navigate the Fluid Analysis page which shows fluid analysis results and the samples' progress.

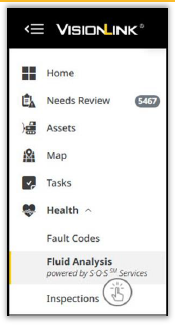

Step 1: Select Health > Fluid Analysis power by S.O.S Services
Click on Health on the left-hand side. This will show you the current state of your machines as well as the new feature, Fluid Analysis showing analysis results and samples' progress.
Step 2: Select the Summary Page tab
Select the Summary page to see the analysis results.
Step 3: Viewing Fluid Analysis Results
You can view results in two ways
Toggle OFF Group By Asset: VisionLink shows each component's fluid analysis result by component (default view).
- Toggle ON Group By Asset: VisionLink consolidates all fluid analysis results for the asset into one line item.
Step 4: Select Date Range
The default date range is the last seven days. You can select a date range for up to five years in the past from the drop-down menu. If you change the date range here, it will be retained in the Track Samples tab and vice versa.
Note: The Date range reflects the date of the sample analysis in the tab.

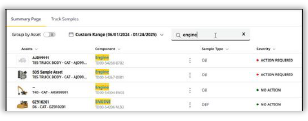

Step 5: Search queries
Search for fluid analysis results by asset or component name, serial number, or asset ID.
Step 6: Open Sample Result Details
Select the Component to open a sample results details page. If available, you can add up to 20 previous fluid analysis results in the related Sample Results section to the current results for comparison.

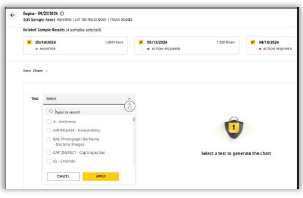

Step 7: Compare historical sample test results
If you have multiple samples you would like to company, change the view to Chart to select up to five tests to compare results.

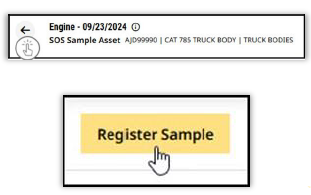

Step 8: Back to Summary Page and Register New Sample
To return to the main Summary Page tab, select the black arrow.
You can register a new sample on either tab.

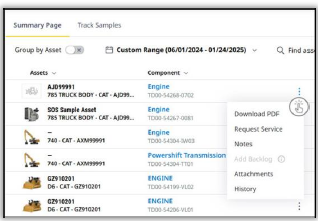

Step 9: Actions Menu
The Actions menu provides all the various options you can perform on the fluid analysis results (i.e. downloading a PDF and requesting service from your dealer).
Step 10: Filters
You can download a report in your choice of formats.
You can change your view of the Sample Page tab using the Settings icon.
Select the Track Samples tab to continue.

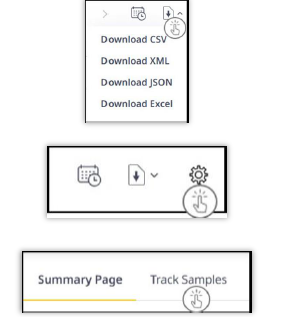

Step 11: Download reports
You can download a report in your choice of formats.
You can change your view of the Sample Page tab using the Settings icon.
Select the Track Samples tab to continue.
Step 12: How to Track Samples
Use the Track Samples tab to view samples registered in VisionLink that are in Submitted, Received in Lab, and In Analysis states. You can change your view of the Track Samples tab using the Settings icon.
